YINGHUA YH-M170G High Quality Double Sided FR4 CCL
FEATURE:
Tg≥180℃ Halogen Free, Lead Free Compatible FR4 CCL
Excellent Peel Strength
Low Z-axis CTE
Excellent Anti-CAF Performance
UV Blocking/ AOI Compatible
Excellent Flammability Resistance
Excellent Dimension Stability
Lower Dielectric Dissipation Factor

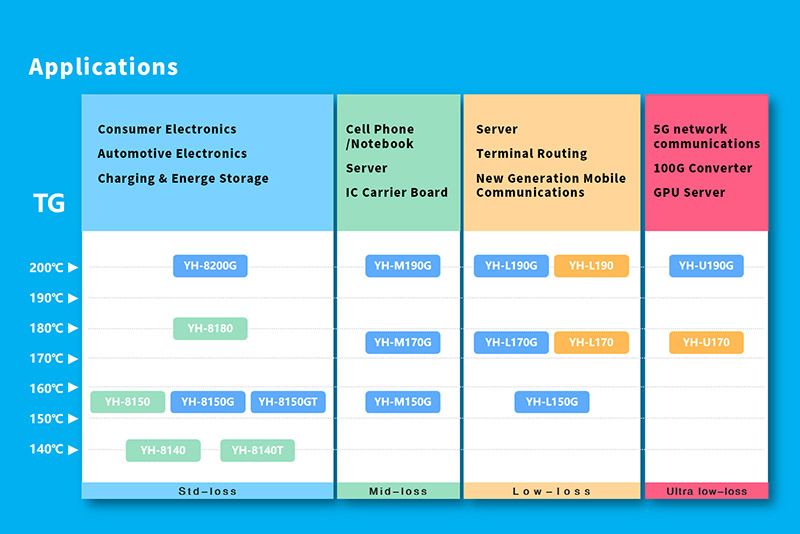

APPLICATIONS:
Commnication Station
Server
Backplane
Militaries, etc.
YH-M170G FR4 CCL SPECIFICATION:
Thickness: 0.05mm to 3.2mm
Tolerance: IPC4101 Class C/M
Copper Foil: 1/4 oz to 6 oz
Standard Size:
940*1245mm(37’’*49’’), 1880*1245mm(74’’*49’’)
1042*1245mm(41’’*49’’), 2082*1245mm(82’’*49’’)
1092*1245mm(43’’*49’’), 2184*1245mm(86’’*49’’)
