YINGHUA YH-U190 High Quality Double Sided FR4 CCL
stars, based on 0reviews
YINGHUA YH-U190 High Quality Double Sided FR4 CCL
FEATURE:
Ultra Low Dk (Dk≤3.25, 10GHz)
Ultra Low Df (Df≤0.0037, 10GHz)
Tg≥200℃, Lead Free Compatible Double Sided FR4 CCL
Excellent Peel Strength
Excellent Anti-CAF Performance
UV Blocking/ AOI Compatible
Excellent Dimension Stability

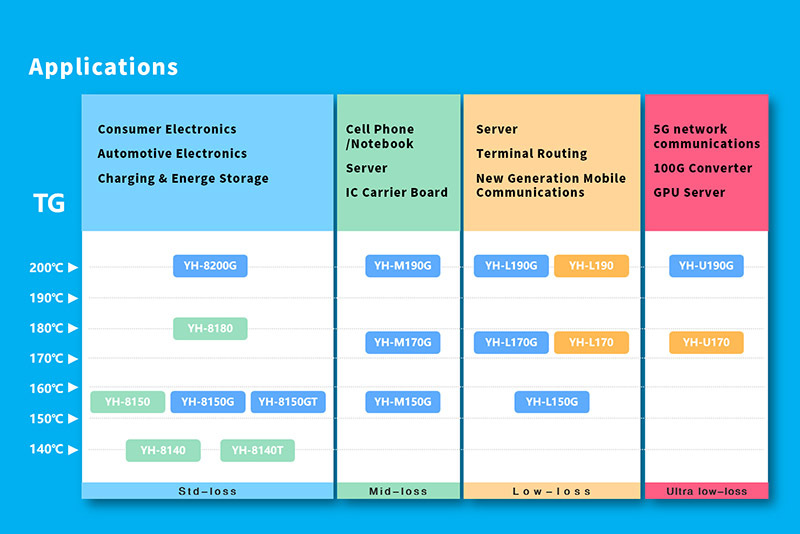

APPLICATIONS:
High Frequency, High Speed, Ultra Low Loss Communications
4C Electronics, etc.
YH-U190G fr4 CCL SPECIFICATION:
Thickness: 0.05mm to 3.2mm
Tolerance: IPC4101 Class C/M
Copper Foil: 1/4 oz to 6 oz
Standard Size:
940*1245mm(37’’*49’’), 1880*1245mm(74’’*49’’)
1042*1245mm(41’’*49’’), 2082*1245mm(82’’*49’’)
1092*1245mm(43’’*49’’), 2184*1245mm(86’’*49’’)
